Circulators

Deliver ink and coating with ease for repeatable applications every time

OEM APPROVED

The Harris & Bruno Circulation System is the preferred chamber/anilox/circulation system for tower coaters throughout the world. We lead the industry in quality, service and value.

RELIABLE TECHNOLOGY WITH A PROVEN TRACK RECORD

Though many of our circulators have different value points geared towards individual market sectors, the thousands that we have installed over the years are rooted from the same high-end technology that we have been fine tuning for the past 70+ years.

TAILORED TO YOUR NEEDS

At H&B we know that not all circulators are created equal. Different processes require different features. We offer various levels of automation – from a single pump gravity return version up to a fully automated PLC-controlled ink delivery system. Every system is made to order to fit your applications.

Advanced Pumping Systems

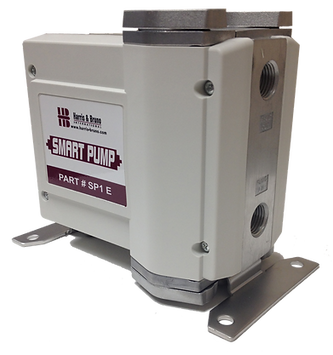

Automated coating and wash functions have always made us the leader in the industry. H&B now proudly takes it a step higher. The revolutionary breakthrough of Smart Pump technology not only enables the circulator to adjust itself for coating viscosity variations— it also allows the circulator, through the use of continuous feedback loops, to automatically adjust its own timers for coating and wash cycles. This proprietary technology has enabled us to stay in front of the curve and take the coating tower automation to the next level.

  • Longer Life – up to 5x of conventional diaphragm pumps

  • Interchangeable with ARO pumps

  • Incorporates new diaphragm material

  • Increased flow rates

  • Less air consumption

  • Simple compact design with fewer moving parts

  • Fluid ports integrated into base

  • Ability to remove balls & checks without disrupting plumbing

  • Ability to operate at lower pressures resulting in less pulsation

  • Stable operation possible even with minimal flow rates

  • Consistent repeatable stopping and starting

What Is a Circulator, and Why is it Needed?

H&B’s renowned circulator technology is the brains of your operation. Each circulator contains all the necessary pumps, valves, fittings, and controls to consistently and efficiently supply coatings and wash solutions to the chamber. We offer several models of circulators to fit the needs of almost all potential coating applications. Upgradeable architecture easily allows for items such as adding hybrids to a conventional machine.

Anilox Roll

Chamber & Coating Trough

AQ or UV Coating Supply

Remote Touch Screen

Circulator

Optional Inline Heating Unit

Optional Inline Temperature

Control Unit

Optional

Specialty Circulator

How Does it Work?

​The H&B Coating Circulator pumps the coating into the cavity or the chamber where it gets deposited into the cells of the anilox roll. Next, the special doctoring blade inside the chamber scrapes the surface of the roll clean, leaving only the liquid inside the confines of the cells.Those cells are what releases coating onto the blanket cylinder, which in turn applies coating to the sheet.

FLEXO CIRCULATORS
Automated Pumping Systems

RapidWash1 and RapidWash2

The fully automated RapidWash cleans 100% of the components used in inking, with no hoses to change out! Control all wash-up cycles with “one touch” automation via the touch screen interface. HydroComp™ Linear Loading reduces cost with automatic compensation for blade wear. The completely self-contained RapidWash cart is small & modular, making it flexible in tight spaces. The small footprint also reduces the amount of ink needed to start up the system. This system features 2 Smart Pumps. With RapidWash, you'll see immediate productivity gains. Faster, higher quality wash-ups mean less downtime between jobs, less color contamination, fewer errors, and more overall savings!

Semi-Automated Pumping Systems

FP1 and FP2

Incorporating H&B’s Smart Pump the FP1 (Solvent Based Inks) and FP2 (Water Based Inks) single-pump units are perfect for flexo applications where a gravity drain from the chamber is adequate. Designed to work with all chambers, the pump and controls are incorporated into a compact, stand-alone enclosure with the ink container sliding into position within or outside the enclosure.

Press-side organization & easy clean-up functions help make it a practical solution for gravity drain applications. Integrated, panel-mounted controls facilitate chamber loading functions, inking & wash-up procedures. Optional features include viscosity control with touch screen interface & air-driven mixer/agitator with speed indicator

DP2 Dual Pumps

This system features dual Smart Pumps for a positive supply and return fluid flow. It’s recommended for water based ink applications where a single pump gravity drain system is not practical or desired.

This design features one pump for supply and one pump for return, providing excellent fluid management control. And since individual pumps supply and return the fluid to and from the chamber, hoses can be routed in a way that they are organized and hidden from sight.

All inking cycle components are also part of the wash cycle and are cleaned with every changeover. Integrated, panel-mounted controls facilitate chamber loading functions & inking and wash-up procedures.


CORRUGATED CIRCULATORS
Automated Pumping Systems

CP2

H&B’s CP2 pumping system incorporates Smart Pump technology to partner the most reliable pump on the market with a pumping system specifically engineered for corrugated print stations. The touch screen and PLC controls allow for automated inking, wash-up & optional viscosity control functions. The dual pump system provides balance between ink supply & return, keeping the chamber in a non-pressurized state. The CP2 delivers superior cleaning results with minimal effort or complexity; purge mode removes any residual wash fluid from the inking system, and soap injection aids wash-ups.

DIGITAL CIRCULATORS
Sheet Fed Coating Applications

EC Systems

Every H&B ExcelCoat sheetfed coater has the possibility of 1, 2, or 3 fully automated circulation systems. This eliminates cross contamination concerns with separate sets of hoses & Smart Pumps for incompatible coating or chemistry types.

  • EC1 : UV (can run other chemistries, but requires a longer flush between coatings. This is the standard first unit in every ExcelCoat configuration).

  • EC2 : AQ

  • EC3 : Primer

ExcelCoat Modular System

The ExcelCoat Modular Circulation System is ideal for printers who routinely change between UV, AQ, & Primer, and are looking to offer a variety of high-quality coating options with quick changeovers. With fully independent pumping systems for each coating chemistry, this modular system is mounted on dedicated racks & slides within the machine. This flexible design is easily up-gradable in the field. With automated changeovers in as little as 10 minutes for incompatible chemistries, this system provides high throughput with minimal downtime.

Web Coating Applications

Web Circulators

H&B ExcelCoat web coaters utilize the same high end circulation systems that we build for the offset industry.

See our Offset Circulators for More Information >

OFFSET CIRCULATORS
Automated Pumping Systems

LC2

This fully automated PLC-controlled circulator is designed specifically for use with various aqueous coatings. Automated coating and wash cycles are controlled via touch screen interface, and include a heated wash water tank to aid in the cleaning cycle. The LC2 utilizes Harris & Bruno’s innovative Intelligent Viscosity Logic (IVL) and Smart Pump technology, delivering automatic adjustments for viscosity variations and dependable longevity.

LC1

This fully automated, PLC-controlled circulator is the perfect solution for the printer with the occasional need to switch between aqueous and UV coating. It utilizes Harris & Bruno’s innovative Intelligent Viscosity Logic (IVL) and Smart Pump technology, delivering automatic adjustments for viscosity variations and dependable longevity. Additionally, the LC1 allows the changeover to UV coatings within a single circulator unit.

The press operator can select the desired coating mode from the touch screen. The PLC then automatically adjusts all purge, run and wash-up functions to suit the desired coating chemistry and eliminate cross contamination.

LC2/LC1A

This circulator is designed for the printer that routinely changes between UV and aqueous coatings and wants to keep the coating chemistries completely separate while maintaining a high degree of automation.

The LC1A is positioned underneath an LC2 and is a direct “plug and play” into the circulator’s PLC control. This setup provides a separate set of Smart Pumps and hoses for both the UV and water based coatings. The operator switches these line connections on the chamber body to coincide with the chemistry being run. Completely independent circuits eliminate any cross contamination concerns.

LC4

This fully automated PLC-controlled circulator is designed specifically for use with various UV coatings. Automated coating and wash cycles are controlled via touch screen interface, and include a heated wash water tank to aid in the cleaning cycle. The LC2 utilizes Harris & Bruno’s innovative Intelligent Viscosity Logic (IVL) and Smart Pump technology, delivering automatic adjustments for viscosity variations and dependable longevity.

LC1A

This circulator is an “Add-on Pump System” designed for the printer that routinely changes between UV and aqueous coatings and wants to keep the coating chemistries completely separate while maintaining a high degree of automation.

The unit is positioned underneath an existing LC1 or LC2 and is a direct “plug and play” into the existing circulator’s PLC control. This setup provides a separate set of Smart Pumps and hoses for both the UV and water-based coatings. The operator switches these line connections on the chamber body to coincide with the chemistry being run. Completely independent circuits eliminate any cross contamination concerns.

Semi-Automated Pumping Systems

LC2V

This semi-automated version of the LC2 is designed for use with various aqueous coatings. It is pneumatically controlled and doesn’t have a PLC control, but includes all the typical logic functions such as chamber load/unload, chamber drain, chamber load pressure, pump speed run/fill, and high level pan sensor. This circulator offers clients a less expensive alternative to the fully automated circulators, while still including a high degree of coating and wash-up automation. The LC2V includes 2 Smart Pumps.

LC1V

This is a semi-automated version of the LC1; designed for the printer with the occasional need to switch between aqueous and UV coatings. It is a pneumatically controlled system with semi-automated control logic. The LC1V has the ability to run UV coatings as well as water-based coatings with a simple change over. It includes all the typical logic functions such as chamber load/unload, chamber drain, chamber load pressure, pump speed run/fill, and high level pan sensor. The LC1V includes 2 Smart Pumps.




CIRCULATOR ADD-ON OPTIONS
Reduce Foaming While Mixing



Duo Mixer: Mixing and Anti-Foaming

Harris & Bruno’s innovative mixing and antifoaming Duo Mixer device works by introducing a large air bubble into the bottom of the tank. As the bubble rises, it mixes the liquid and helps to dissipate foam. Save yourself the hassle of mechanical mixing with the Duo Mixer’s automated pneumatic agitation. No electricity is needed for this air only device. With easy start-up and handling, the Duo Mixer is applicable for all tank sizes.

Available for a 30-day Try and Buy Program. Check in with one of our circulator experts to get this going: Duo Mixer Trial

"The Duo Mixer has proven itself perfectly. It's actually a shame that we didn't know about it earlier."

- Günther Schneeberger, Goerner Packaging GmbH

Keep Coating at Optimal Temperatures

Jacketed Tank with Chiller

Some coatings require temperature control to maintain sustainability. For these materials, Harris & Bruno offers an optional chiller unit that can be incorporated into the stainless steel, water jacketed reservoir. The water jacketed reservoir can also be connected to the press chill water supply if that is available.

Inline Heating Unit

The seamlessly integratable H&B Inline Heating Unit accurately and consistently provides the highest level of process control necessary for optimal UV coating performance. This product allows press operators to easily control UV coating temperature, resulting in better coating release, enhanced leveling characteristics and increased gloss levels.

No longer is ambient air temperature an influential factor in UV coating performance; this unique design provides continuous closed loop temp. monitoring at the anilox roll surface. In addition, the inline design is seamlessly integrated into your existing H&B Circulator, offering the added benefit of wash-up to the list.

Easily Mix and Run Particulates

Specialty Coating Circulator

The H&B Specialty Coating Circulator (SCC) is designed with peristaltic pumps for metallic, pearlescent, opaque and other “difficult-to-run” specialty coatings. This circulator pumps a wide range of viscosities up to 600 centipoise and includes manual wash-up procedures to minimize coating waste. The SCC functions as a stand-alone system, fully integrated into H&B Chamber/Anilox System, or connected to PLC of another H&B Circulator for touch screen operation.
